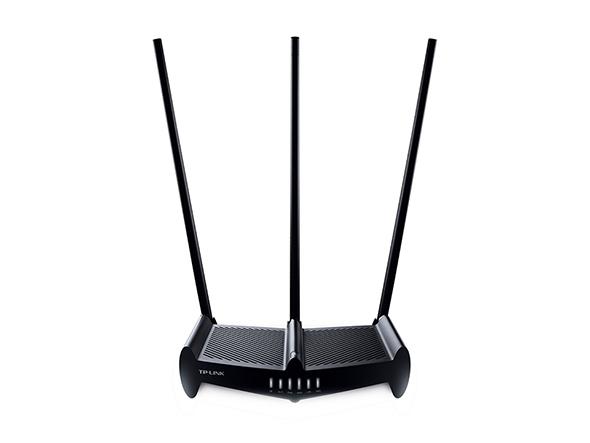

Router de Alta Potencia de hasta 450Mbps TL-WR941HP

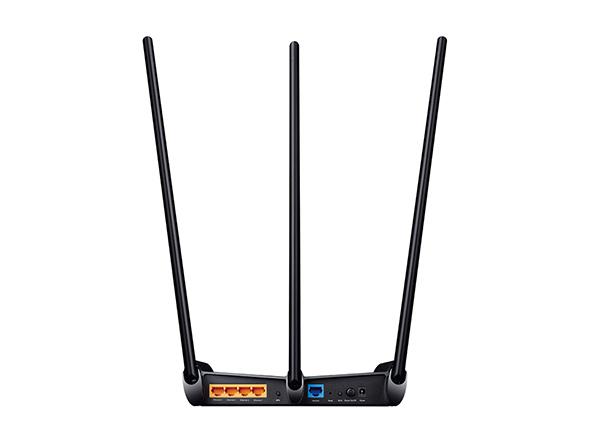

Interfaz

4 10/100Mbps LAN Ports
1 10/100Mbps WAN Port

Botón

Wireless On/Off Button, RE Button, WPS Button
Reset Button, Power On/Off Button

Fuente de Alimentación Externa

12VDC / 1.5A

Estándares Inalámbricos

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensiones (W X D X H)

9.0 x 7.5 x 1.9 in. (227.5 x 190 x 48.3mm)

Antenas

3*9dBi Detachable Omni Directional Antenna
(RP-SMA)

Frequency

2.4-2.4835GHz

Signal Rate

11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception Sensitivity

450M: -71dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -91dBm@8% PER
6M: -89dBm@10% PER
1M: -97dBm@8% PER

Transmit Power

CE:<20dBm(2.4GHz)
FCC:<30dBm

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge,
WMM, Wireless Statistics

Wireless

64/128/152-bit WEP / WPA / WPA2,
WPA-PSK / WPA2-PSK

Quality of Service

WMM, Bandwidth Control

WAN Type

Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond

Management

Access Control
Local Management
Remote Management

DHCP

Server, Client, DHCP Client List,
Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, Comexe, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec (ESP Head)

Access Control

Parental Control, Local Management Control,
Host List, Access Schedule, Rule Management

Firewall Security

DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding

Certification

CE, FCC, RoHS, NCC, BSMI

Contenido del paquete

450Mbps Wireless N High Power Router
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Technical Support Card

System Requirements

Microsoft® Windows 10/8.1/8/7, XP, MAC® OS,
NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
