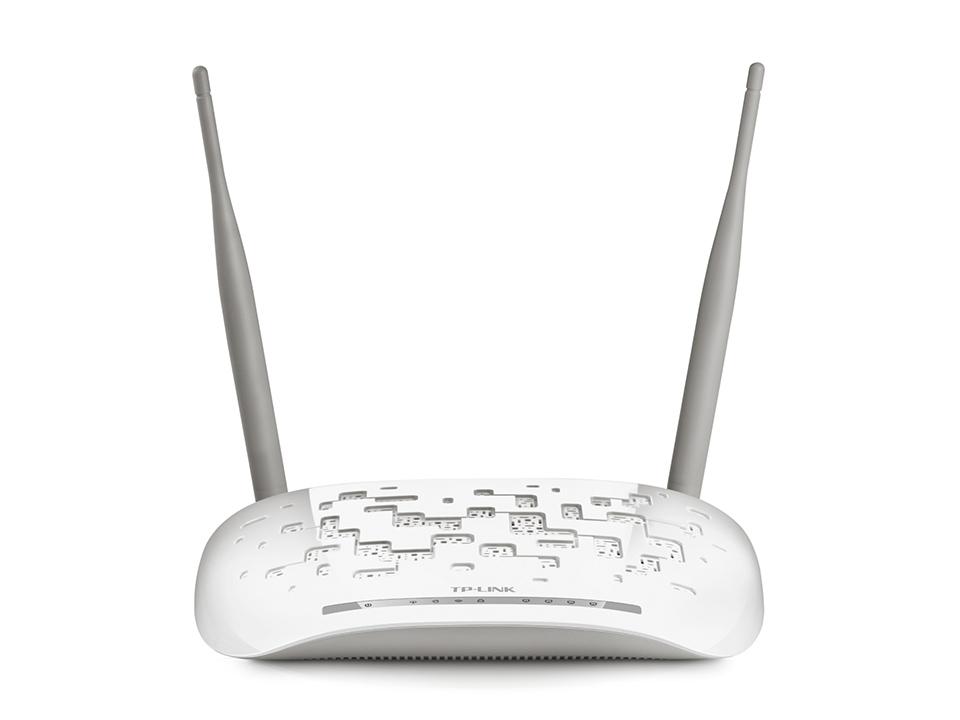

Modem Router Inalámbrico ADSL2 + N 300Mbps TD-W8961ND

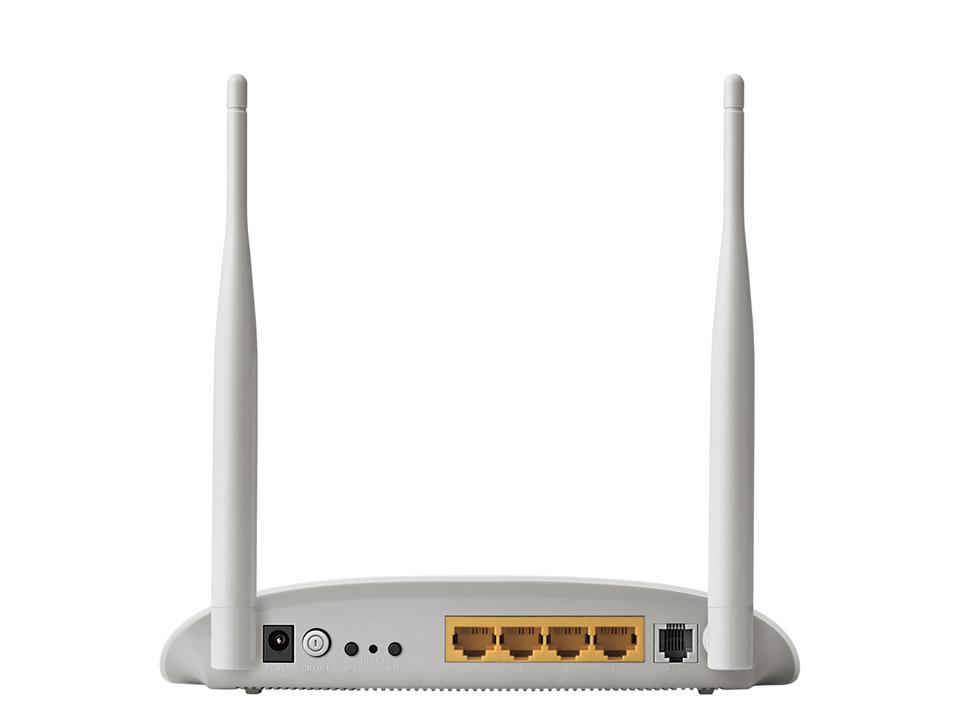

Interfaz

4 Puertos RJ45 10/100Mbps
1 Puerto RJ11

Botón

1 Botón de encendido / apagado
1 Botón WPS
1 Wi-Fi de encendido / apagado

Fuente de Alimentación Externa

9VDC/0.85A

Estándares IEEE

IEEE 802.3, 802.3u

Estándares ADSL

Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs),
ITU-T G.995.1

Estándares ADSL2

ITU-T G.992.3 (G.dmt.bis),
ITU-T G.992.4 (G.lite.bis)

Estándares ADSL2+

ITU-T G.992.5

Dimensiones (W X D X H)

7.7*5.1*1.4 pulgadas ( 195*130*35 mm )

Tipo de Antena

Omnidireccional, Desmontable, Reversa SMA

Ganancia de Antena

2x5dBi

Wireless Standards

IEEE 802.11n, 802.11g, 802.11b

Frequency

2.400-2.4835GHz

Transmit Power

<20dBm(EIRP)

Wireless Security

SOPORTA 64/128 bit WEP, WPA-PSK/WPA2-PSK,
Wireless MAC Filtering

Quality of Service

QoS Remarking based on IPP/ToS, DSCP and 802.1p

Security

NAT Firewall,
SPI Firewall,
MAC / IP / Packet / Application / URL Filtering,
Denial of Service(DoS),
SYN Flooding,
Ping of Death

Management

Web Based Configuration(HTTP),
Remote management,
Telnet management,
Command Line Interface,
SSL for TR-069,
SNMP v1/2c,
SNMP over EOC,
Web Based Firmware Upgrade,
CWMP(TR-069),
Diagnostic Tools

Port Forwarding

Servidor Virtual, DMZ, ACL(Access Control List)

VPN Pass-Through

PPTP, L2TP, IPSec Pass-through

ATM/PPP Protocols

ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
PVC - Up to 8 PVCs,

Advanced Features

Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP relay;
Network Address Translation (NAT);
PVC/Ethernet Port Mapping
VLAN, 802.1P,
Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS,
IGMP snooping V1/2
IGMP Multicast,
UPnP

Certification

CE, FCC, RoHS

Package Contents

TD-W8961ND
divisor externo
Cable Telefónico RJ-11
Cable RJ-45 Ethernet
Guía de Instalación Rápida
CD de recursos
Adaptador de poder

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ o Windows 7, MAC® OS, NetWare®, UNIX® o Linux.

Environment

Temperatura de funcionamiento: 0 ° C ~ 40 ° C (32 ° F ~ 104 ° F)
Temperatura de almacenamiento: -40 ° C ~ 70 ° C (-40 ° F ~ 158 ° F)
Humedad de funcionamiento: 10% ~ 90% sin condensación
Humedad de almacenamiento: 5% ~ 90% sin condensación
